GIGABYTE Z790 AORUS ELITE X ATX Motherboard
৳ 0.00
Key Features
- Model: Z790 AORUS ELITE X
- Supported CPU: 14th Gen, 13th Gen & 12th Gen Processors (LGA1700)
- Supported RAM: 4 x DDR5 DIMMs, up to 8266(O.C.)
- Graphics Output: 1 x HDMI, 1 x DisplayPort
- Features: Intel 2.5GbE LAN chip
Description
Specification
| Basic Information | ||
| Supported CPU | LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel® Core, Pentium Gold and Celeron Processors L3 cache varies with CPU |
|
| Chipset | Intel Z790 Express Chipset | |
| BIOS | 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
|
| Form Factor | ATX Form Factor; 30.5cm x 24.4cm | |
| Audio | Realtek ALC1220-VB CODEC High Definition Audio 2/4/5.1/7.1-channel |
|
| Expansion Slots | ||
| PCI | CPU: – 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16) * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. Chipset: – 2 x PCI Express x16 slots, supporting PCIe 4.0 and running at x4 (PCIEX4_1/PCIEX4_2) |
|
| Memory | ||
| Type | DDR5 | |
| Slots | 4 x DIMM sockets | |
| Supported Memory | Support for DDR5 8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MT/s memory modules Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules |
|
| Maximum Memory | up to 192 GB (48 GB single DIMM capacity) | |
| Graphics | ||
| Graphics | Integrated Graphics Processor-Intel HD Graphics support: – 1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz * Support for HDMI 2.0 version and HDCP 2.3. – 1 x DisplayPort, supporting a maximum resolution of 4096×2304@60 Hz |
|
| Connector & Ports | ||
| HDMI | 1 x HDMI | |
| Display Port (s) | 1 x DisplayPort | |

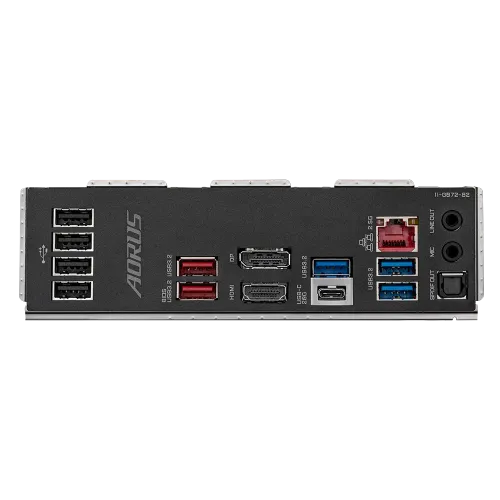

| USB (s) | Chipset: – 1 x USB Type-C port on the back panel, with USB 3.2 Gen 2×2 support – 1 x USB Type-C port with USB 3.2 Gen 2 support, available through the internal USB header – 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel – 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header) Chipset+2 USB 2.0 Hubs: – 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers) |
|
| LAN Port (s) | Intel 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) | |
| Supported Storage | CPU: – 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) Chipset: – 2 x M.2 connectors (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB, M2Q_SB) – 1 x M.2 connector (Socket 3, M key, type 22110/2280 SATA and PCIe 4.0 x4 SSD support) (M2M_SB) – 6 x SATA 6Gb/s connectors |
|
| RAID | RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices |
|
| Audio | 2 x audio jacks | |
| Internal I/O Ports | 1 x 24-pin ATX main power connector 2 x 8-pin ATX 12V power connectors 1 x CPU fan header 1 x CPU fan/water cooling pump header 3 x system fan headers 1 x system fan/water cooling pump header 3 x addressable RGB Gen2 LED strip headers 1 x RGB LED strip header 4 x M.2 Socket 3 connectors 6 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C header, with USB 3.2 Gen 2 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 2 x Thunderbolt add-in card connectors 1 x reset button 1 x Q-Flash Plus button 1 x Clear CMOS button 1 x reset jumper 1 x Clear CMOS jumper |
|
| TPM (Trusted Platform Module ) | 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only) | |
| Others | ||
| Special Features | Support for GIGABYTE Control Center (GCC) * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. Support for Q-Flash Support for Q-Flash Plus Support for Smart Backup |
|
| Bundled Software | Norton Internet Security (OEM version) LAN bandwidth management software |
|
| Warranty Information | ||
| Manufacturing Warranty | 3 years | |
Description

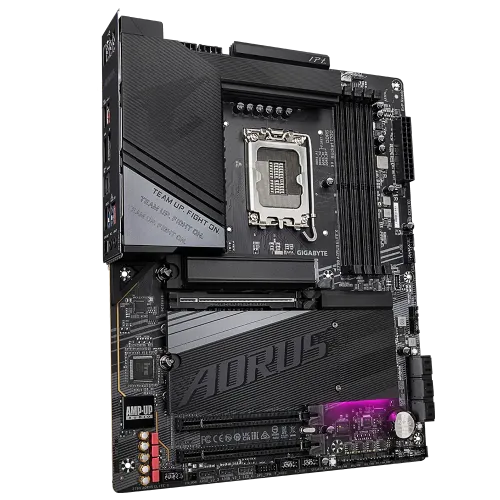

GIGABYTE Z790 AORUS ELITE X ATX Motherboard
The GIGABYTE Z790 AORUS ELITE X ATX Motherboard is a high-end motherboard built to fulfill the demands of both gamers and power users. This motherboard is compatible with Intel Core 14th and 13th-generation CPUs, allowing you to take advantage of the most recent CPU technologies for maximum performance. Its digital dual VRM technology with 16+1+2 phases provides consistent power delivery, making it an ideal choice for reliable performance and overclocking capabilities. Multitasking and gaming performance are greatly improved with support for Dual Channel DDR5 memory via four DIMM slots and XMP 3.0 memory modules. The motherboard also excels in graphics compatibility, having a PCIe 5.0 x 16 slot with 10X power for the most recent graphics cards. The EZ-Latch Click and EZ-Latch Plus M.2 heatsinks feature a screwless and quick-release design, effectively dissipating heat from M.2 SSDs and improving overall system stability. The user-friendly UC BIOS offers an intuitive experience with Quick Access functions, simplifying system customization and optimization. Additionally, the motherboard boasts ultra-fast storage capabilities with four PCIe 4.0 x4 M.2 slots, reducing loading times for games and applications. Thermal management efficiency is a top emphasis, with the VRM Thermal Armor Advanced and M.2 Thermal Guard L assisting in maintaining overall thermal performance even under severe workloads. Its 2.5GbE LAN offers speedy networking, making it ideal for online gaming and streaming. The motherboard also has a wide range of connectivity choices, such as DisplayPort (DP), HDMI, Front USB-C at 10Gb/s, and Rear USB-C at 20Gb/s, making it ideal for connecting a wide range of devices and peripherals. Finally, with the ALC1220 audio chipset and audiophile-grade capacitors, it delivers high-quality sound for an immersive gaming and entertainment experience.
Buy GIGABYTE Z790 AORUS ELITE X ATX Motherboard from Qtech
In Bangladesh, you can get original GIGABYTE Z790 AORUS ELITE X ATX Motherboard From Qtech. We have a large collection of latest GIGABYTE Motherboard to purchase for your Desktop PC. Order Online Or Visit your Nearest Qtech Shop to get yours at lowest price. The GIGABYTE Z790 AORUS ELITE X ATX Motherboard comes with 3 years warranty.
What is the price of GIGABYTE Z790 AORUS ELITE X ATX Motherboard in Bangladesh?
The latest price of GIGABYTE Z790 AORUS ELITE X ATX Motherboard in Bangladesh is 0৳. You can buy the GIGABYTE Z790 AORUS ELITE X ATX Motherboard at best price from our website or visit our showrooms.
